CMT Eclipse LET-Conveyor Automated Marking Machine

Engineered and Built by Columbia Marking Tools

CMT Eclipse Model LET-Conveyor is a high production automated industrial laser marking machine.

The Machine

LET-Conveyor Automated

Designed for manufacturers that need fast, unattended marking with minimal footprint, the CMT Eclipse combines an engineered safety enclosure, modular conveyor interface, and flexible laser mounting options. Its tunnel architecture isolates the laser process from the production environment to control fume extraction, part orientation, and process consistency — enabling continuous, lights-out marking of tags, parts, and assemblies.

Complete marking system:

  • Selection of laser marking heads
  • Fully enclosed conveyor tunnel designed for OEM integration or retrofit into existing lines.
  • Modular conveyor interface: belt, roller, or indexed pallets; quick-change adaptors.
  • Multiple laser mount positions (top/side/angle) for optimal beam access.
  • Integrated fume extraction port and filter mount (compatible with in-plant extraction).
  • Safety interlocks and viewing windows with certified laser-safety glazing (factory-configured).
  • PLC/industrial I/O and Ethernet/IP, Profinet, Modbus TCP support for seamless line control.
  • Vision-ready: mount points and cable paths for cameras, sensors, and barcode readers.
  • Access panels for fast service and tool-free conveyor removal.
  • Optional pass-through loading/unloading gates, air-blow/pulse cleaning, and reject station.
  • Robust industrial construction — powder-coated steel frame and removable service trays.
1 2 3 4 5

The CMT Eclipse LET-Conveyor Automated Model for Extreme High Volume production laser marking of industrial parts. Check out included features and essential components to make a complete turnkey station.

Technical Brochure

The Mark

The Features

Automated Tag Marking Enclosure

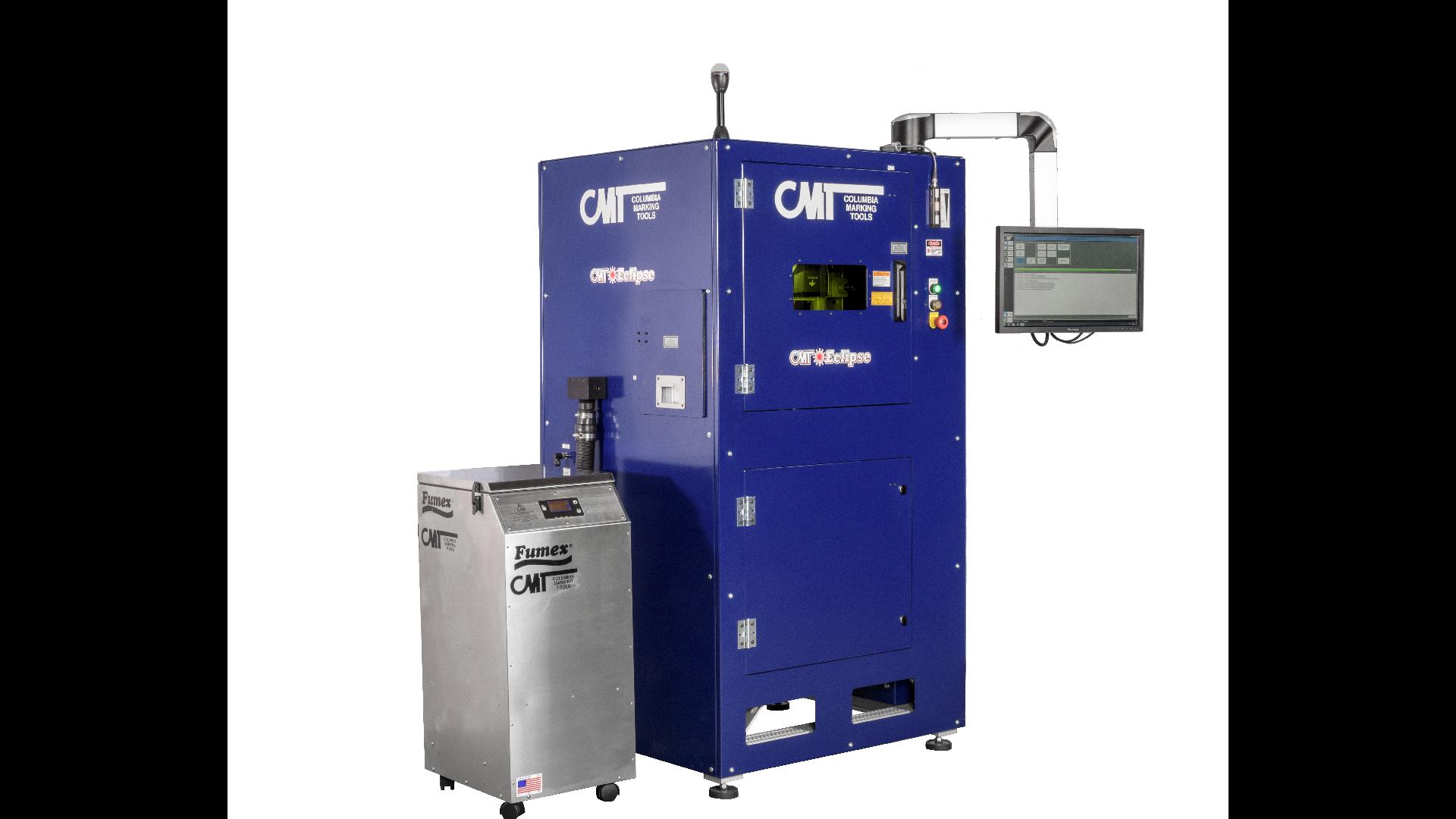

CMT Eclipse Model LET-Tag light-tight laser marking enclosure features a fully-automated tag feeding system.

Key Points:

  • Automated operations
  • Adjustable feeding rails for flexibility
  • USA FDA CDRH certificate of safety
  • Fume extraction port

Standard Floor style:

  • LET Large dimensions 38" x 34" x 70" (includes machine base)

Laser Source

CMT has a range of laser sources to meet any application requirement, from CO2 laser for plastic marking to high wattage fiber lasers with 3D profiling capabilities.

  • Low production or high production
  • 1 watt up to 50 watt power
  • CO2, fiber
  • Standard or profiling
  • 3rd-axis controls to mark on the outside of round parts

Work Area

The CMT Eclipse Model LET-Tag automated tag feeders are designed per application and can be customized.

  • Adjustable rails to accommodate various sized tags
  • Additional position for fixed/manual station
  • Infeed stack, and outfeed chute

Floor-style Base

The LET-Tag automated laser marking machine comes complete with a floor base for stability. The base has room to mount the laser controller and HMI PC. The solid steel construction is designed for high-production environment, stability and durability.

  • Floor space required: 38" x 34" and 54" x 54" - access door open, and fume extractor
  • Solid steel tooling plate
  • Fork lift points

Laser Software

All laser sources come with Windows software. Features include:

  • Automated date coding, and serial numbering
  • Placeholders for external data input via MES systems
  • Input for logos and other artwork
  • Varying power for different elements in the same marking legend
  • Additional marking passes to maximize depth of mark

The Essentials

All the needed elements to have a complete turnkey marking station.

Industrial PC

Compatible Systems

  • I-Mark M and MS Series - included
  • I-Mark C Series
  • CMT Eclipse LE16 Compact
  • CMT Eclipse LE24 Round
  • CMT Eclipse LE48 Large Bed
  • CMT Eclipse LER Rotary Turn Table
  • CMT Eclipse Tunnel Automated Conveyor

A great addition to the I-Mark dot peen and scribe marking machines or the CMT Eclipse laser marking machines is the CMT industrial PC. The Windows-based PC is a fanless computer with no moving parts. The complete upgrade includes: Windows software, preloaded laser software, 17" monitor and mount, membrane keyboard and shelf.

Read More

Fume Extractor

Compatible Systems

  • CMT Eclipse LE16 Compact
  • CMT Eclipse LE16HD Robot Station
  • CMT Eclipse LE24 Round
  • CMT Eclipse LE48 Large Bed
  • CMT Eclipse LER Rotary Turn Table
  • CMT Eclipse Tunnel Automated Conveyor

CMT offers an industrial fume extractor for laser marking. Laser marking is a burning process, and the smoke contains particulate matter that is not healthy for the operator to breathe. The smoke and particulate also impedes the laser beam and reduces the clarity and depth of the mark. A powerful fume extractor system is recommended to assure safety of the operator and the clarity of the mark.

The CMT Fume Extractor is contained in a brushed stainless steel floor-style cabinet with casters. The 3-stage filter system is pre-piped and wired to the laser enclosure system. The complete package includes hoses and suction nozzle mounting. CMT recommends this essential component to provide longevity to the laser unit investment.

Read More

HMI - Machine functions

Automated tag production machine controls are controlled by the CMT HMI. This system can be used to take data from a customer MES system and mark indentification tags. The CMT HMI also assures the proper function of the marking source which could be laser, dot peen, or scribe.

Read More

CMT Eclipse LET-Tag Automated Machine provides streamlined laser marking with high volume throughput.

Fully-automated tag marking eliminates operator errors and saves precious production time.
