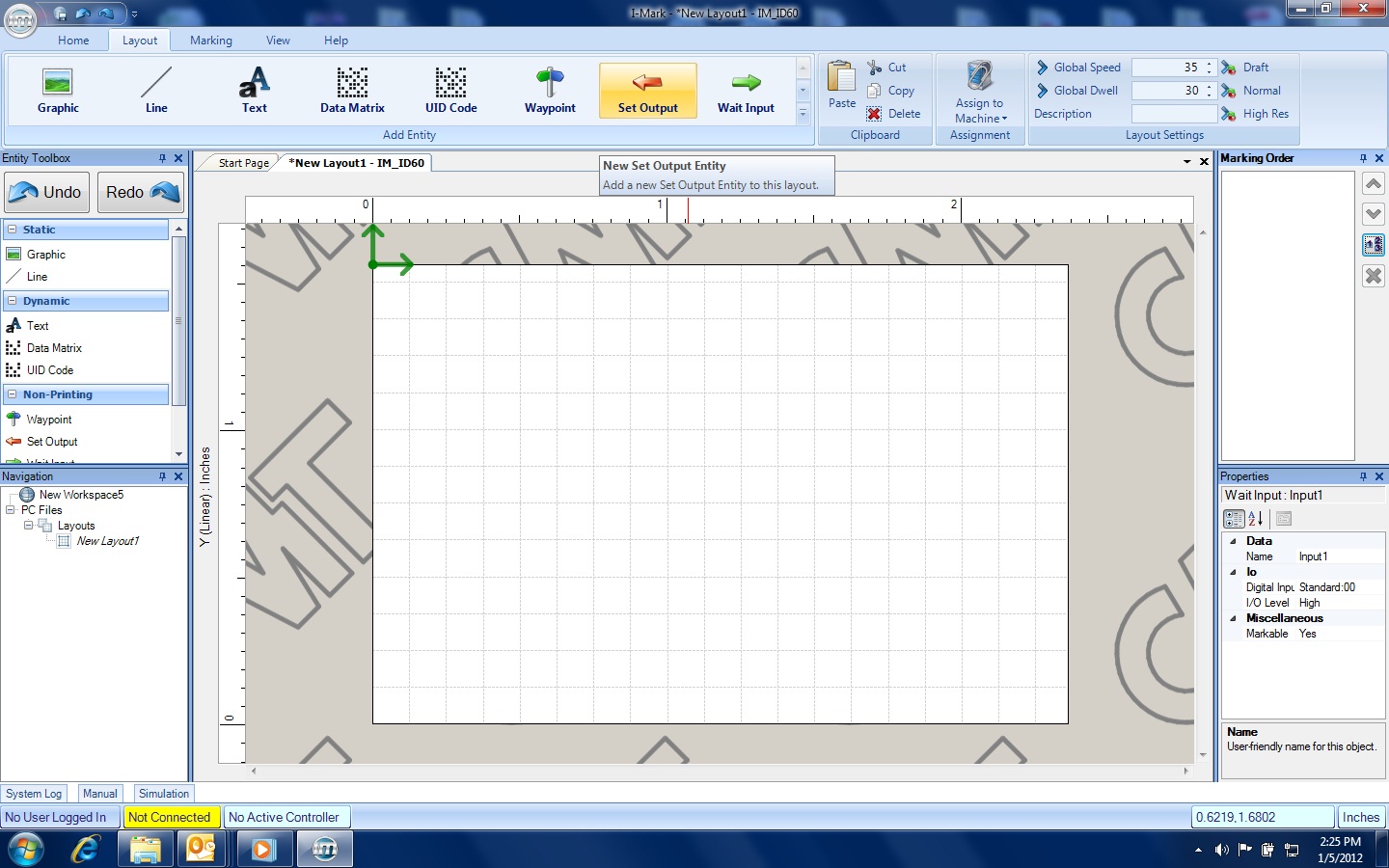

The "Output" icon is located in the Layout Ribbon. This entity is only made available if  the system is set to Advance Mode.





This entity is a non-printing object so it will be added to the Marking Order Menu but nothing will be added to the graphical portion of the layout. When added to the program this entity will set the desired output to the selected state and then proceed to the next entity in the program.

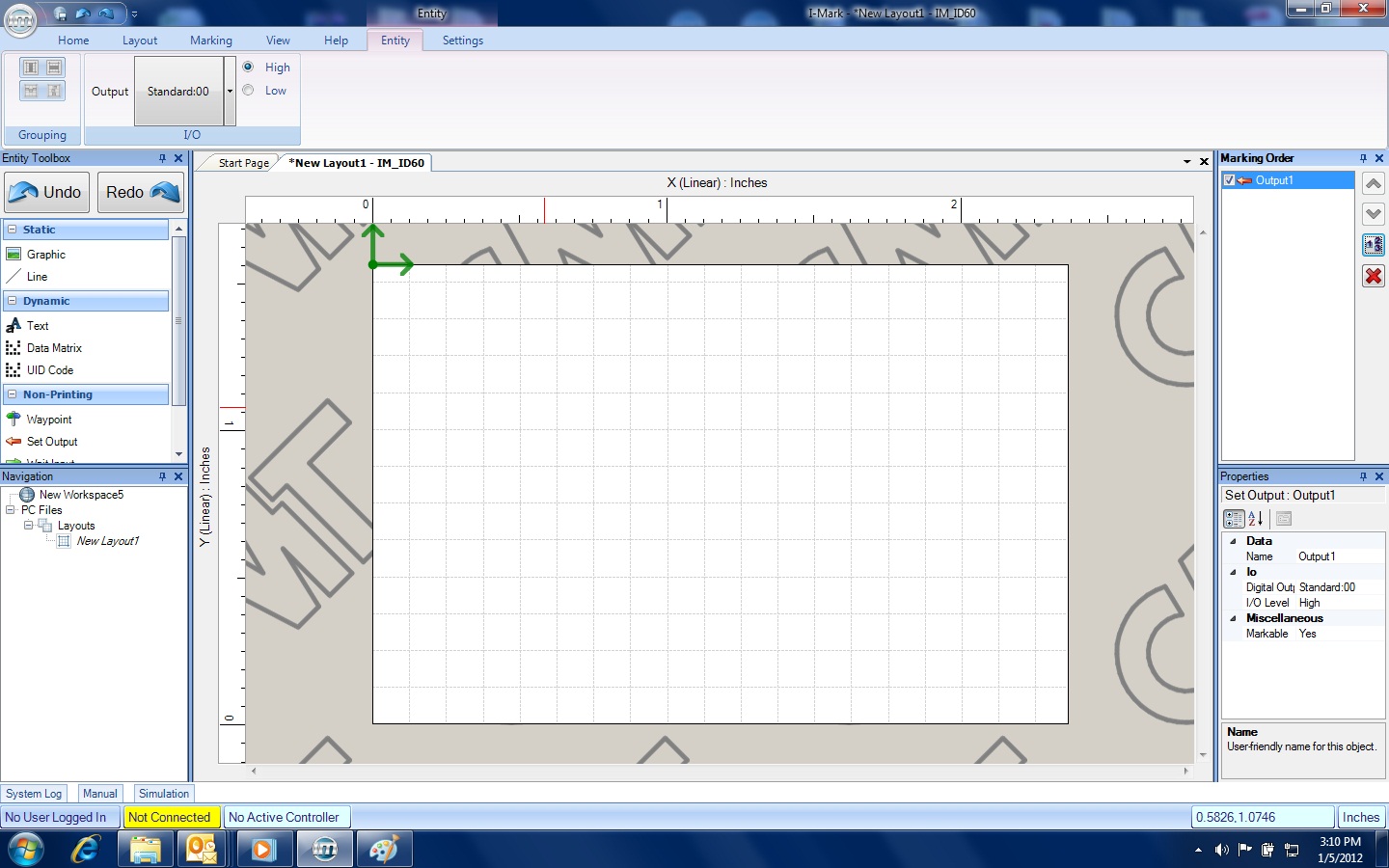

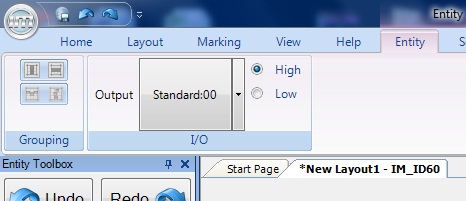

Once the Output entity is selected on the opened layout the configuration associated with it may be changed. Such as desired Output number and the I/O condition (high/low) These variables may be changed in the Properties Window or on the Ribbon menu when the entity is selected.
