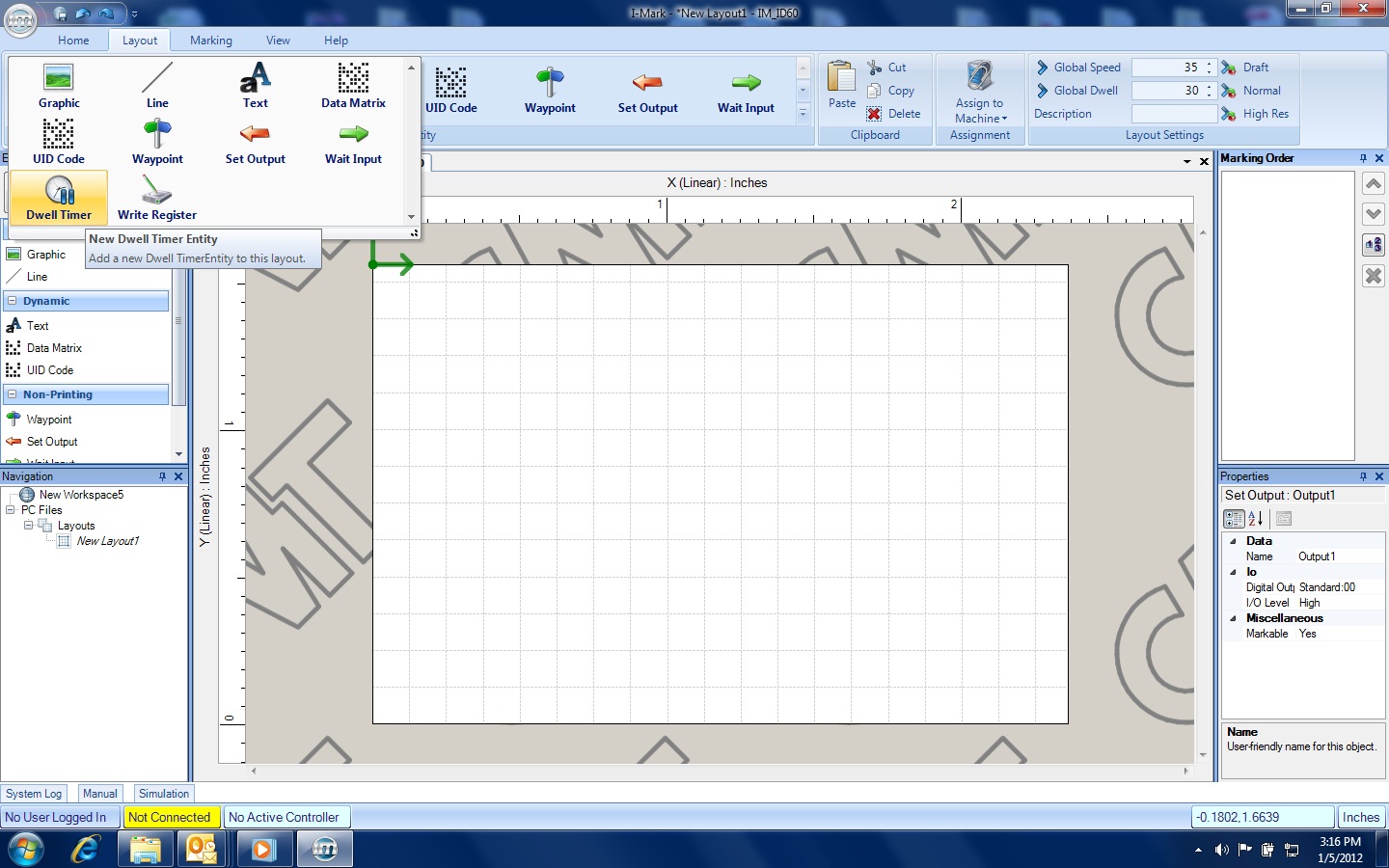

The "Dwell Timer" icon is located in the Layout Ribbon. This entity is only made available if  the system is set to Advance Mode.

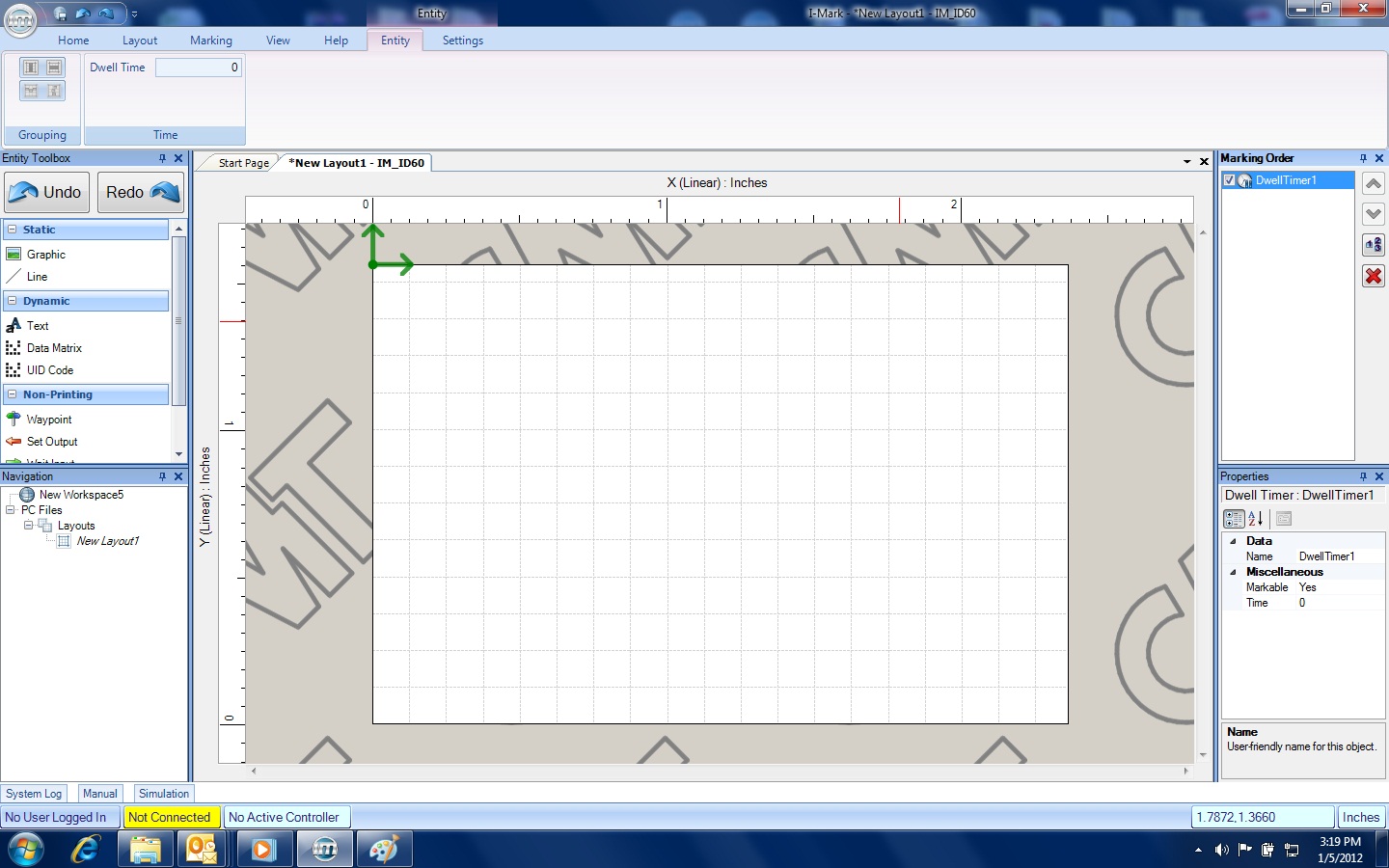

This entity is a non-printing object so it will be added to the Marking Order Menu but nothing will be added to the graphical portion of the layout. When added to the program this entity pause the program for the set amount of time and then proceed to the next entity in the program.

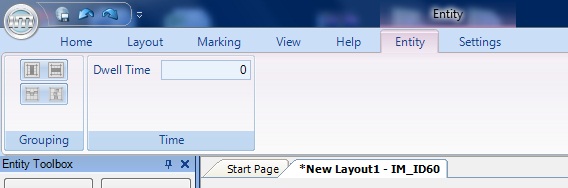

Once the Dwell Timer entity is selected on the opened layout the configuration associated with it may be changed. Such as the desired amount of time for the program to Dwell in milliseconds. These variables may be changed in the Properties Window or on the Ribbon menu when the entity is selected.
